SPADERS

Fast & Effective Cultivation

Imants Spading machines take care of your soil.

The rotating movement ensures an optimal mixing effect. Because of this you can incorporate clay thoroughly through the profile.

Since the spade take soil bites of 25 to 30cm (10-12inch) and pull these from the underlying soil layer, an impermeable disturbing layer is not created at the bottom, the so-called plow pan. This means the precipitation can penetrate into the deeper soil layers and replenish the groundwater. The good structure remains after the spading which not only allows water to penetrate, but also ensures a good oxygen level.

Because spading machines do not form a hard pan in the soil, capillary action remains intact, so rising groundwater can reach the roots of plants when they need it. During spading, the subsoil is mixed but not completely turned over. This prserves most of the soil temperature.

SPADING MACHINES

27 Series

Designed for compact tractors in the 30-70 hp range.  Comes standard with power harrow and operates on 540 PTO. These spaders have a  working speed of up to 2kph.  They are most suited for operations such as small organic growers, orchards, vineyards, market gardens, etc.

Soil type: Dry clay, Loam Loess, Sand
Working width: 120-180cm
Working Depth: 15-30cm
SX spade option only

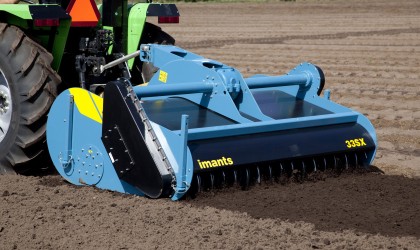

33 Series

Works down to 30cm,  Comes standard with power harrow and operates on 540 PTO.  Requires tractor in the 65-85hp range, with a working speed of up to 2.5 kph.  These models are most suited for medium-sized growers.



Soil type: Dry clay, loam, loess, sand
Working width: 150-250cm
Working depth: 15-35cm

SX/WX spade option available

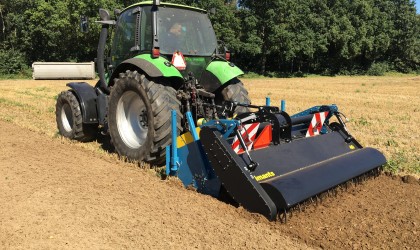

40 Series

 Working depth down to 65cm, requiring HP 50-160. These models are most suitable for tree farms, fruit & vegetable growers, and perennial crops where deeper soil tillage is desired.  Requires an average of .  Creeper gear, hydrostatic, or vario transmission required.  Working speed range .

Soil Type: All, dry clay, wet clay, loam, loess, sand
Working width: 150-300cm
Working depth: 15-45cm
SX/WX spade option available

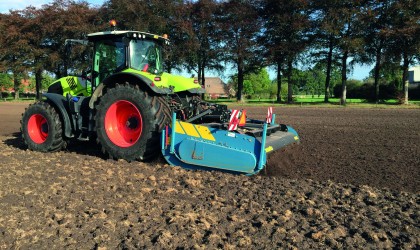

48 Series

 Designed for tractors in the 130-250hp range and available in 3m and 3.66m working widths.  Comes standard with power harrow and operates on 1000 PTO. These spaders have an average working speed of 5.6kph and are suited for medium to larger-sized operations.   The 3.66m model will work approximately 5 acres per hour

Soil Type: Dry clay, loam, loess, sand
Working width: 300-366cm
Working depth: 20-55cm
SX/WX spade option available

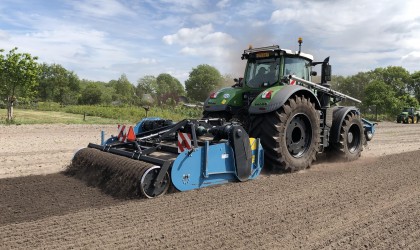

58 Series

Designed for tractors in the 200-400hp range. The 58 Series comes with a ground driven prisma roller, cage roller or a chain driven harrow. These machines are designed for large operations with light to medium clay soils. The 58 Series is available in 3m, 3.66m or 4.5m.

Soil type: Dry clay, loam, loess, Sand
Working width: 300-450cm
Working depth: 20-50cm

SX/WX spade option available

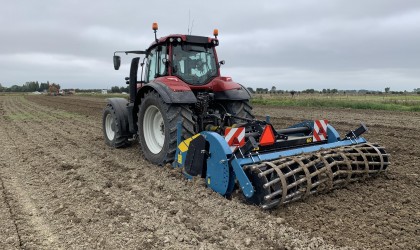

60 Series

Designed for tractors in the 75-180 hp range. The 60 series has three different options for the blades depending on the result needed, narrow spade blade (breaking through with minimal mixing), standard spade blade or the standard spade blade in combination with mixing plates for intensive mixing

Soil type: All dry clay, wet clay, loam, loess, sand
Working width: 150-270cm
Working depth: 45-65cm
SX/SM spade option available

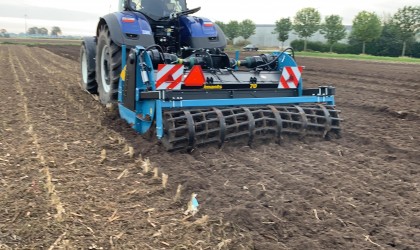

70 Series

Designed for tractors in the 230-330 hp range. The 70 series like the 60 series has the three different options for the spades. In certain circumstances a working depth of up to approximately 1m is feasible.

Soil type: Dry clay, loam, loess, sand
Working width: 290cm
Working depth: 45-90cm
SX/SM spade option available
Narrow/Standard/Mixing Plates

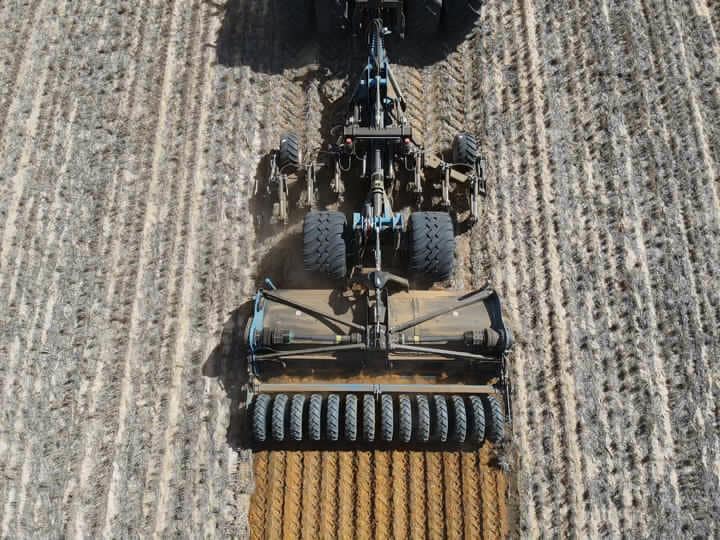

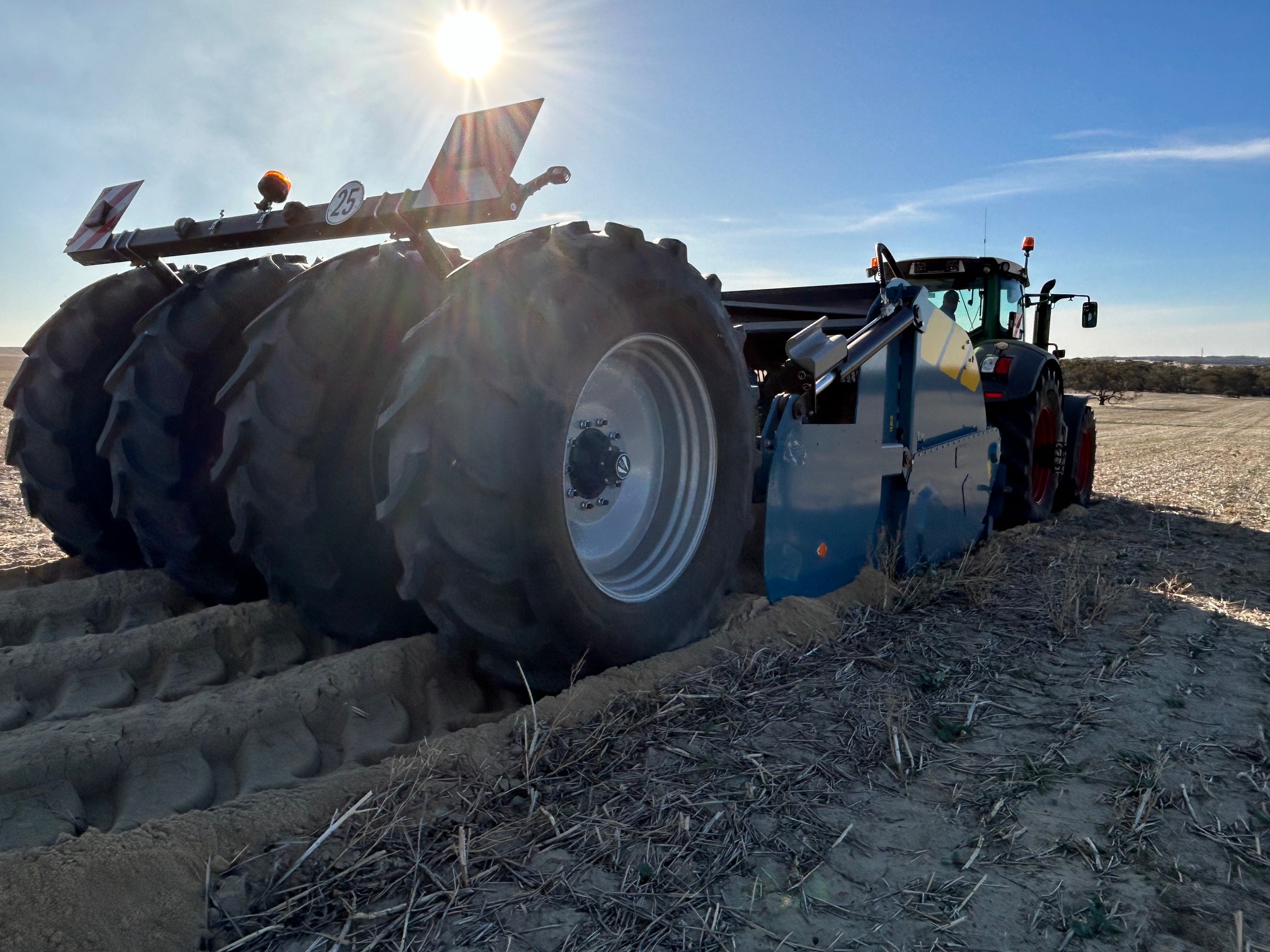

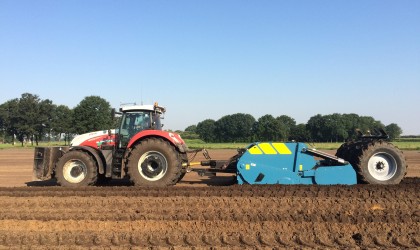

135 Series

 Working depth down to 56”, working width of 300 or 345cm. This spader requires a tractor in the 350 hp range, with creeper, hydro, or vario transmission.  This model is pulled on tractor drawbar with its own carrier/lift system, weighs 11 tons, and works to 135cm deep. Three spade options like the 60 series for different requirements. HP requirements for this machine range from 270-400.

Soil type: All, dry clay, wet clay, loam, loess, sand
Working width: 265-310cm
Working depth: 75-145cm
SX/SM spade option available
Narrow/Standard/Mixing Plates

Roller Options

DRIVEN POWER HARROW

Nullam id dolor id nibh ultricies vehicula ut id elit. Praesent commodo cursus magna, vel scelerisque nisl consectetur et

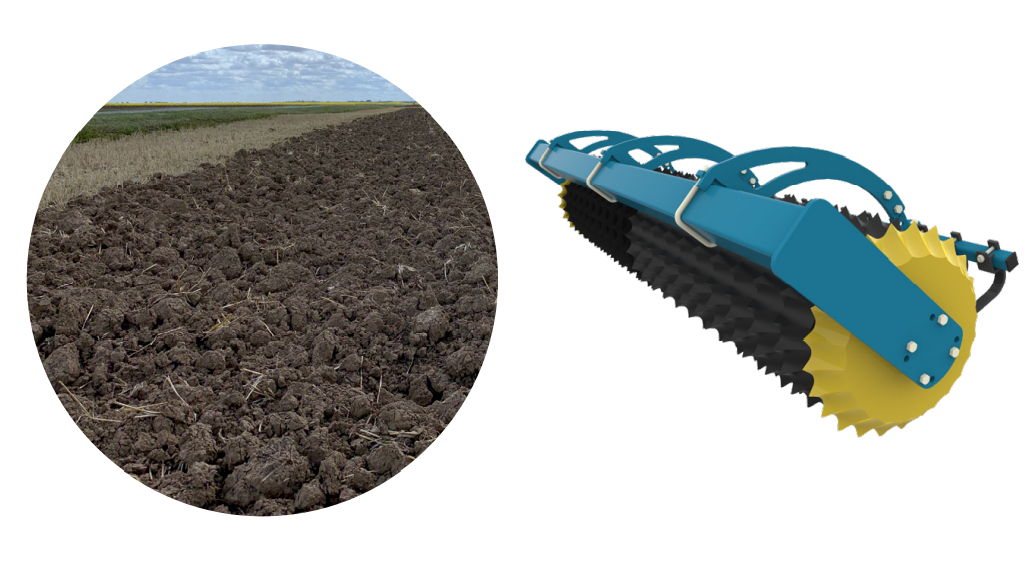

Prisma Roller

Nullam id dolor id nibh ultricies vehicula ut id elit. Praesent commodo cursus magna, vel scelerisque nisl consectetur et

Please ask about our other options specific for different models including pre-rippers, tool carriers and auto reset rippers.

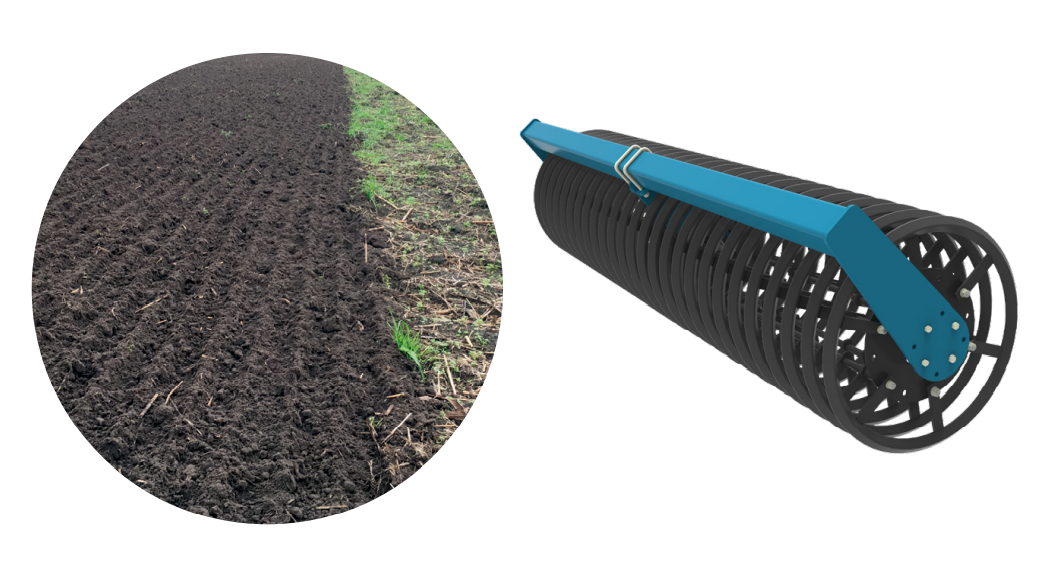

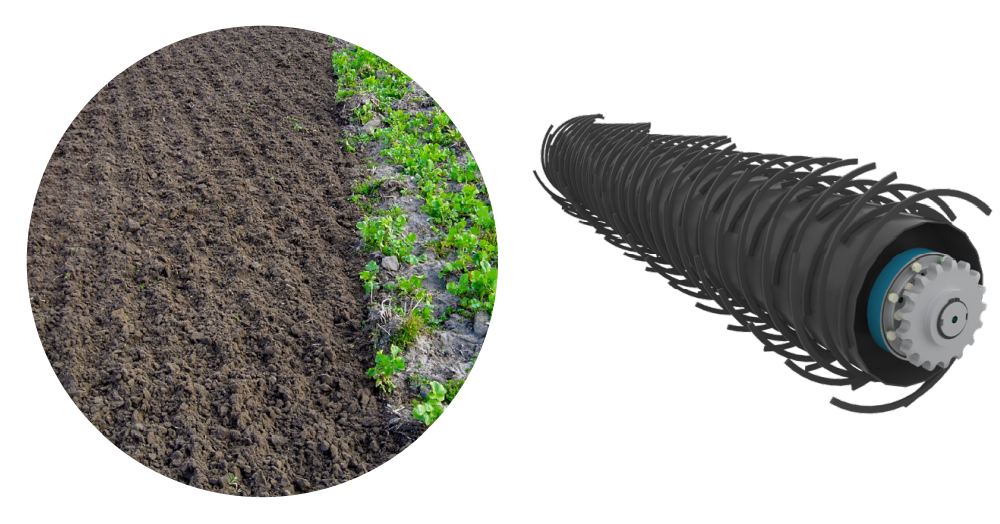

RING ROLLER

Nullam id dolor id nibh ultricies vehicula ut id elit. Praesent commodo cursus magna, vel scelerisque nisl consectetur et

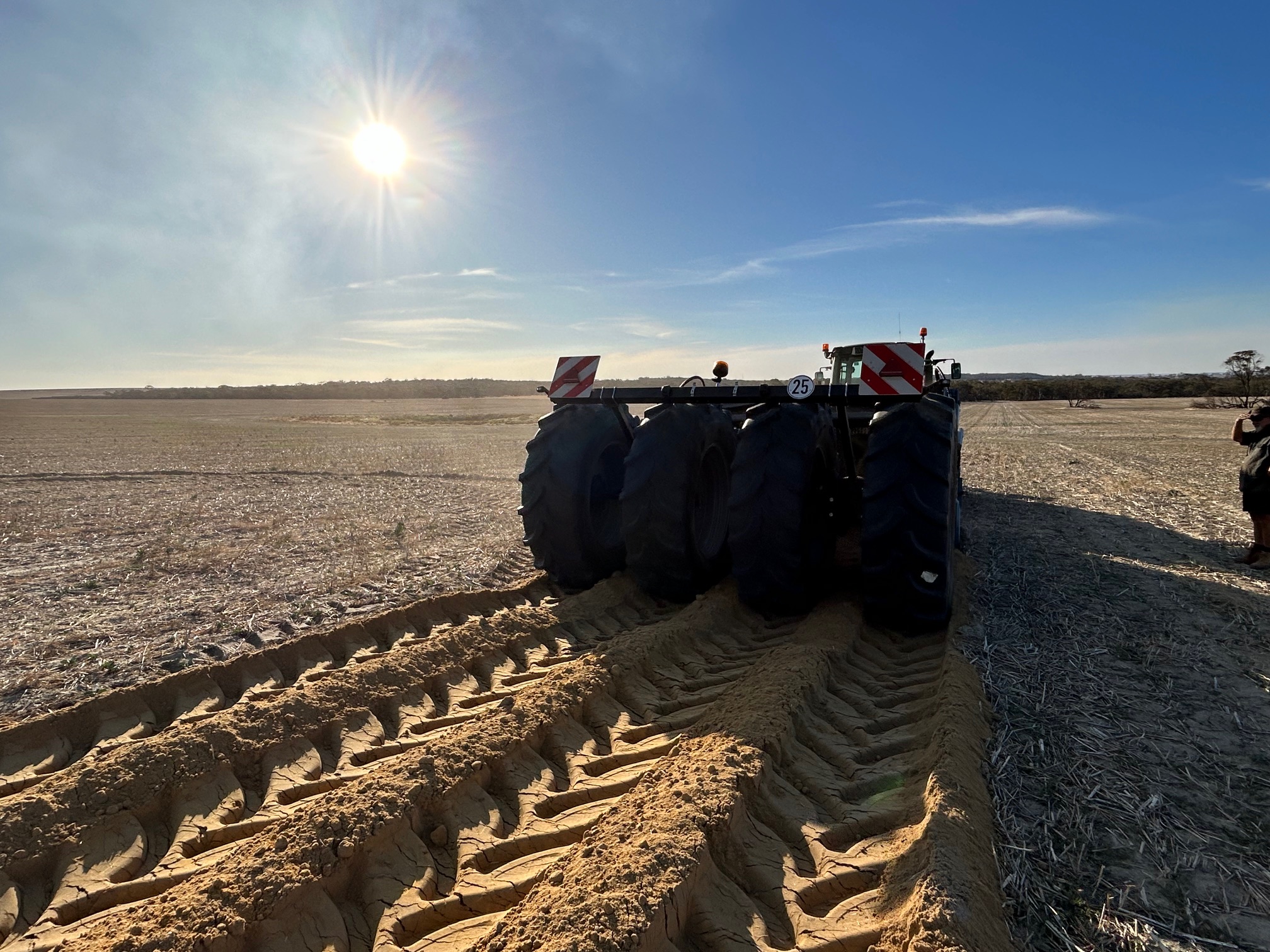

“We have found our Imants spader with rippers in the front a true one pass machine. Having owned an opposition spader for a few years where we were having to pre-rip before spading in clayed or non-wetting sand country, this machine has saved us time and money by being able to do it in one pass. We also love the mixing ability of the Imants spader and have found it far superior to what we had in the past with far less wear on the spades as well. Nathans back up service and help has also been second to none”

Damien Schlink, Mt Howick, East Esperance

“Purchased the Imants spader for incorporating clay and couldn’t be happier with the results.”



Aaron Candeloro
